The Role of the Advanced Microgrid Controller in Microgrid Financing

July 25, 2016
Siemens models how to use an advanced microgrid controller to achieve best ROI, and therefore make microgrid financing easier.

The advanced microgrid controller is the brain of the system, the software that determines how a microgrid can achieve best economics, and therefore become more bankable. Siemens models how an advanced controller derives value in this excerpt from our report: “How Microgrids Can Achieve Maximum Return on Investment (ROI): The Role of the Advanced Microgrid Controller.”

Siemens modeled an advanced microgrid at a university, running various scenarios that illustrate the complex way a sophisticated microgrid controller derives value.

The microgrid that was modeled contains two combined heat and power (CHP) units, each with a 2 MW capacity; wind and solar generation, energy storage and controllable and fixed electric and thermal loads.

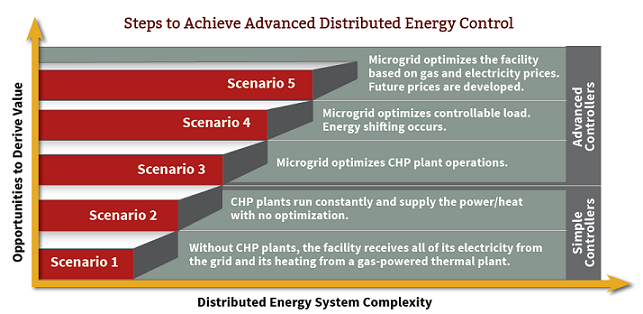

Five scenarios were modeled. In the first two scenarios, the microgrid does not have an advanced controller. In Scenarios 3-5, where the microgrid is optimized with an advanced controller, new and sophisticated ways to derive value open up. The result is a two- to four-year ROI.

Optimizing CHP

One of the most complex parts of the model involves optimizing the CHP. This is because CHP must take into account both electricity and heat, as well as other input parameters, such as operation and maintenance costs (per kWh), and ramping speed, which is how fast the CHP generators start. (This is necessary to know in order to plan timing in switching between the grid and the on-site generators.)

A CHP plant operates within certain load thresholds. If the facility’s power demand falls below a certain level, the plant shuts off for safety reasons. “This shows how important it is to size these generators properly,” says Dino Ablakovic, Senior Solutions Architect at Siemens.

The modeled facility has two 2-MW CHP plants. So hypothetically, if load is below 2 MW, one CHP plant operates. If load rises above 2 MW, the second plant kicks in. However, if the plant is optimized with an advanced controller, it quickly becomes apparent that it’s not that simple to get the most out of the facility’s resources.

For example, a problem can occur in certain circumstances when heat and electric demand do not correspond—at least if the facility does not have an optimized controller.

Consider a situation where the amount of heat needed requires operation of both plants, but the amount of electricity needed is much lower, below 2 MW. Under these circumstances, both CHP plants would automatically shut down since the electric load has fallen below the safety minimum. A power outage would result.

“There is clearly a need for some type of advanced controller there,” Ablakovic explains. An optimized controller would avoid the outage by calculating the mix of resources to keep the facility running, taking into account load requirements, the price of electricity and the efficiency level of the CHP plants.

Because of the many calculations the controller makes, the mix it decides upon at any given moment may even be somewhat counter intuitive.

For example, imagine a winter day that creates a need for more heat than just one of the plants can supply. You may think the controller would solve the problem simply by turning on the second plant—especially since electricity prices on the grid happen to be high at this time, higher than the cost of electricity generated by the CHP.

But the microgrid controller determines that it is more cost-effective to buy power from the grid than to run the second CHP plant. Why? CHP plants lose efficiency when they do not run to full capacity, Ablakovic says. Operating the second plant at partial capacity is not as cost-effective as buying the extra electricity from the grid, when CHP efficiency factors are taken into account. The CHP is most efficient if it is running at 2 MW—at that level it uses the least amount of fuel per kWh.

Flexible and inflexible resources

CHP is just one aspect of the microgrid that can be optimized to improve pricing and increase efficiency.

“A microgrid has both fixed and flexible energy resources. The controller is able to optimize all of the flexible energy resources within a microgrid,” Ablakovic says.

For example, a research lab may require a constant temperature, so is inflexible. A lecture hall may be flexible—the controller can reduce air conditioning in the room when it’s empty, increase it when it’s not.

Real-time pricing

For this microgrid, hourly electricity pricing is available, so based on those numbers, the controller is able to fine tune in any given hour whether it is most cost-effective to use its own generation versus buy power from the grid.

The controller automatically calculates a range of parameters to determine optimization. Some of these parameters change in real-time, which can cause a re-arranging of the facility’s energy configuration at any given point in time.

Energy shifting

The advanced microgrid controller also can help the facility manage electric tariffs. This is especially important because in some places a utility bases annual pricing on a facility’s peak load. If the rate threshold is say 2 MW, and the customer hits that peak only a once a year, it still is moved to the higher rate for the entire year.

“If based on the historical data we see that there are only a few cases where this price level is reached, we try to isolate these cases, and through load optimization and energy shifting, see if we can avoid going over this price range,” he says.

Forecasting of future prices

The controller also provides the ability to plan the best mix of future resources. It can run analytics based on various different forecasted gas and electric prices, along with decreases or increases in load. These forecasts can help in planning the optimal mix of resources for the future.

For example, perhaps the plant plans to install a diesel generator for use when grid prices peak. If electricity prices are going to rise over the years, the analysis may show an increasing need for the diesel generator in the future years. That might suggest resizing the diesel generator in preparation for the later years. Or once downtime is considered for the maintenance of the diesel generator, it may prove optimal to install a second generator.

Role of the advanced microgrid controller in microgrid financing

The bottom line is that an advanced microgrid or distributed energy project has many resources at its disposal. When an advanced controller is used to manage the resources, it can derive value unavailable to simple generation-only projects. For example, a facility that uses CHP alone, or solar plus storage, without this advanced optimization and control, offers less flexibility and fewer pathways to maximum efficiency and best pricing. As the industry searches for ideal financing models, it is important to consider the abilities of an advanced controller and how it derives value for the microgrid. Microgrids and distributed energy projects achieve best ROI when their resources are deployed to their maximum.

With an advanced microgrid controller, it is possible to get a microgrid’s value down to one number—down to a true ROI—that reflects the uniqueness of a microgrid’s abilities. With that calculation done, it becomes easier to design financing packages that are based on the true and clear value of a microgrid.

A path to find the ‘killer app’ of microgrid financing, a model that will encourage more rapid adoption of microgrids, does exist. And it is the advanced microgrid controller that offers the signposts to get there.

Side note: Some of the parameters influencing the microgrid’s ability to fully optimize include:

▶▶ Current electricity and gas contract costs

▶▶ Hourly electricity prices

▶▶ How much fuel cost savings the microgrid can derive from CHP at any given time

▶▶ The availability of controllable loads, which can shift

▶▶ The influence of load shifting on utility charges

▶▶ How load profiles change over time

▶▶ How energy contract prices change over time

▶▶ The size of the generation resource; how it might change over time

▶▶ The variability/output of renewables and how energy storage is used

▶▶ The value of resiliency

▶▶ Generator efficiency and ramping ability

▶▶ Diesel fuel costs

Read more about microgrid financing in our report, “How Microgrids Can Achieve Maximum Return on Investment (ROI): The Role of the Advanced Microgrid Controller,” downloadable at no cost, courtesy of Siemens.
